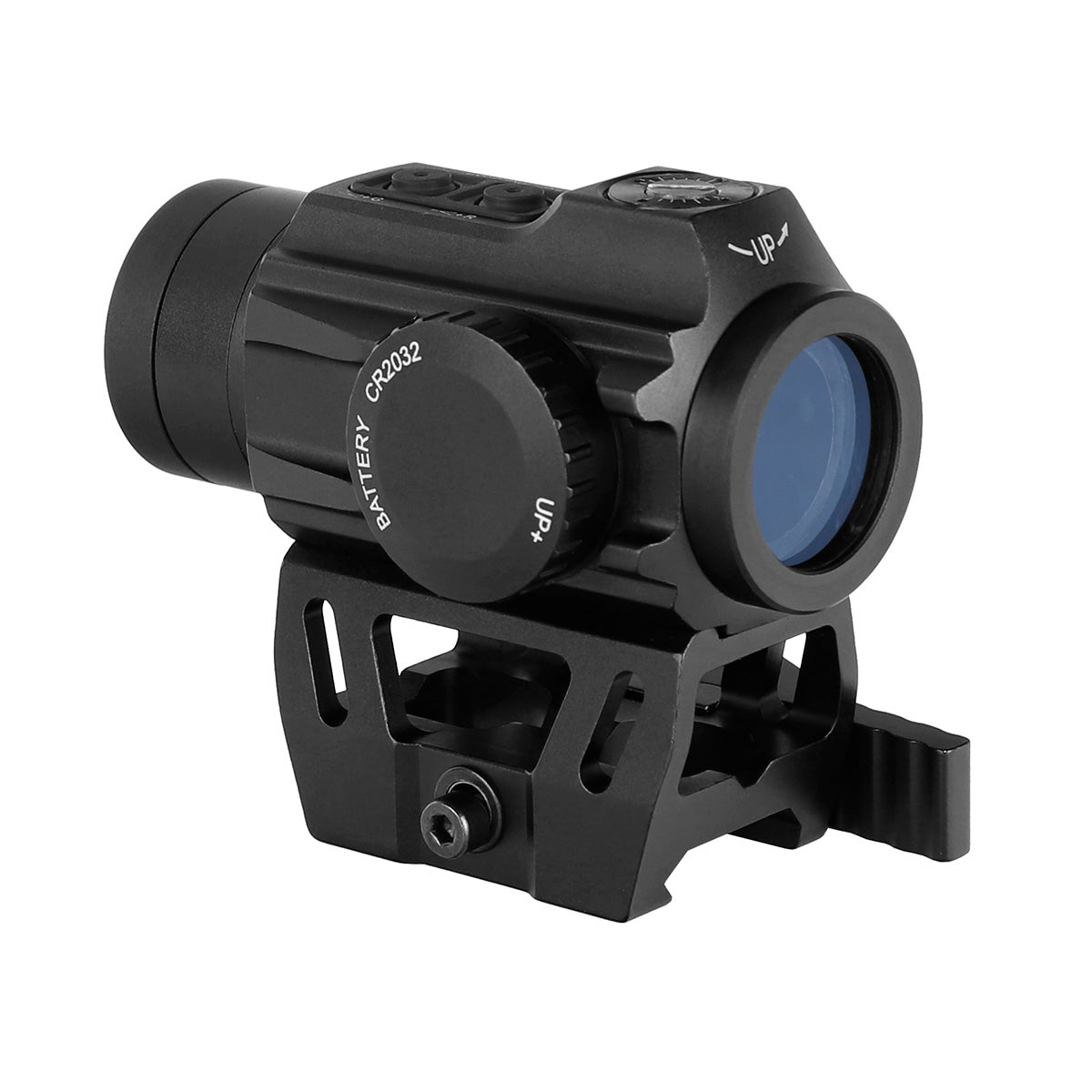

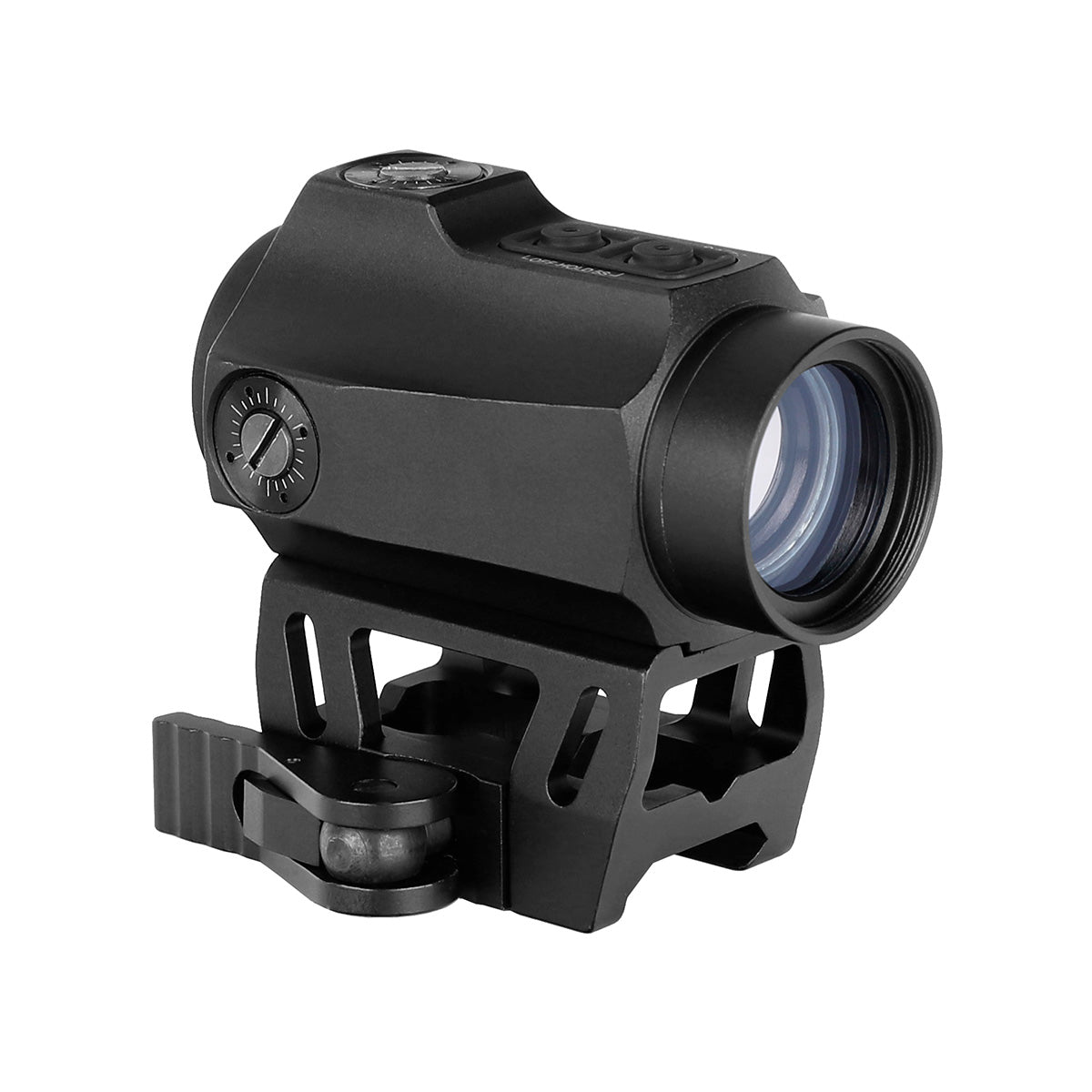

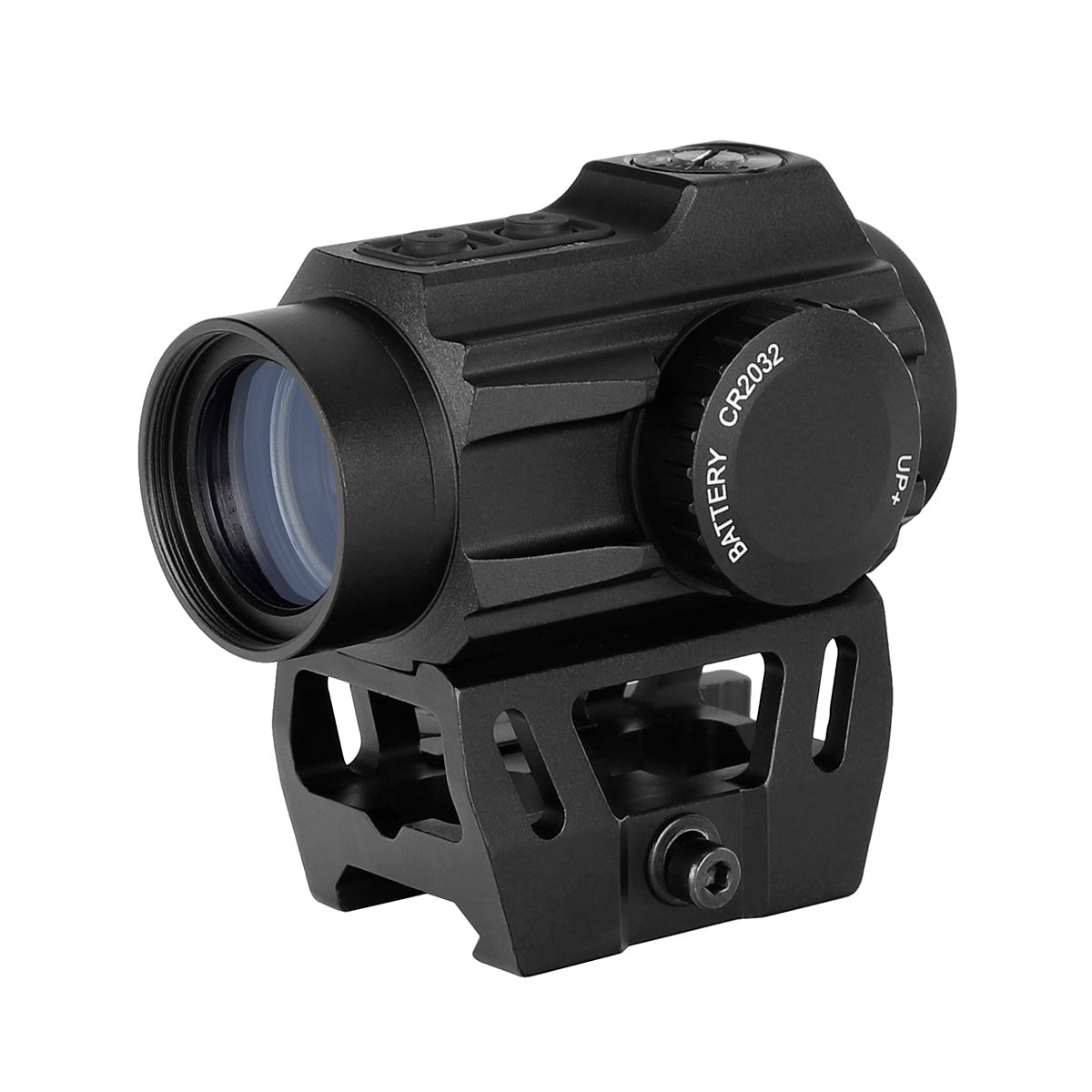

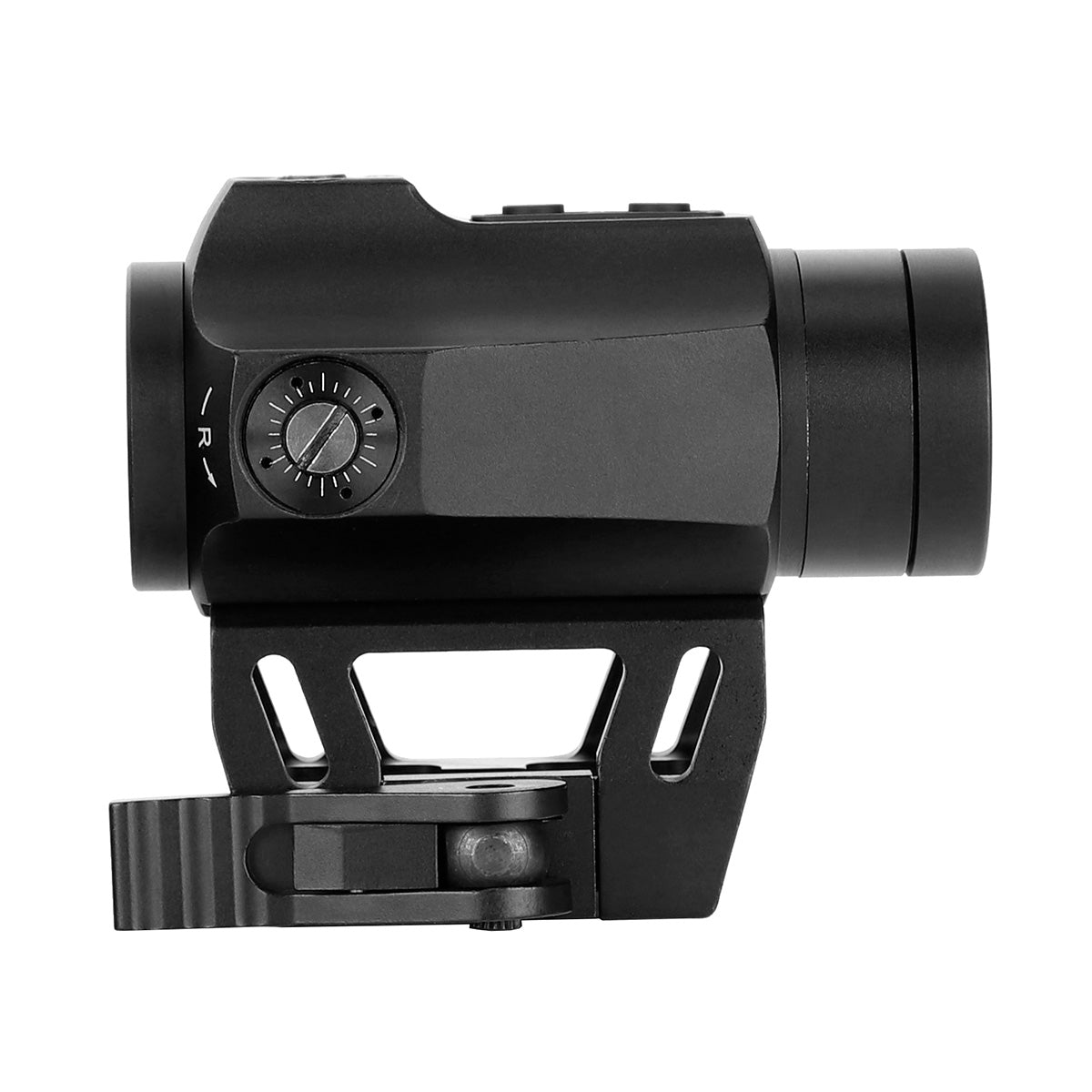

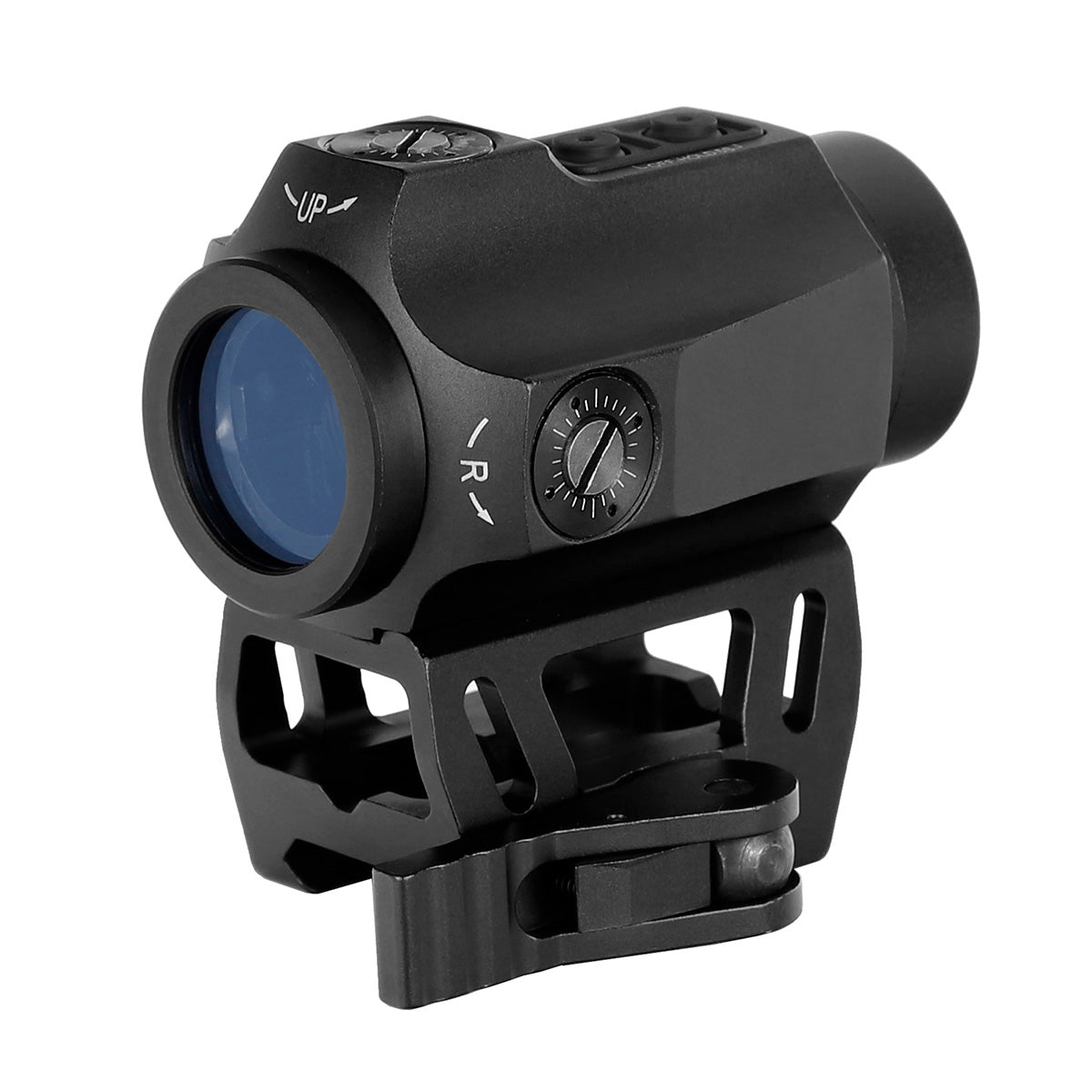

1X25 2 MOA Red/Green Dot Sight

ohhunt 1x25 Micro Dot Sights are the ideal optical devicefor indoor and outdoor, short to medium-range shooting. The small but adaptable units are perfect for a wide range of daytime and night time applications including hunting, tactica scenarios and precision shooting. The sights are also parallax corrected, ensuring the reticle remains in the same spot regardless of target range and aiming position.

FEATURES

1. Special red and green illumination control buttonsboth for light color change and light shut off.
2. See-through high riser making it easy to keep your eyes on things in front of you.

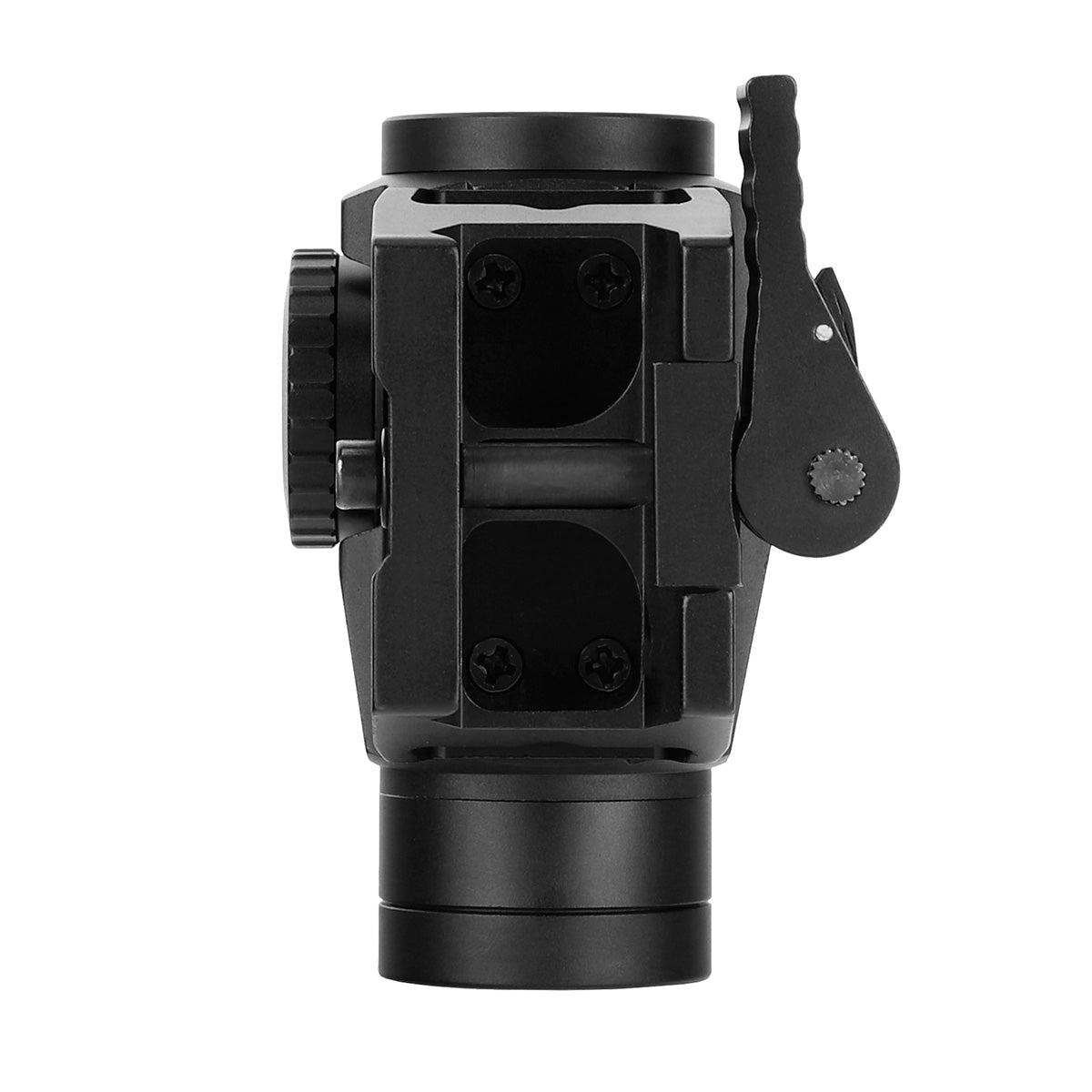

3. Quick detach mount texturing for simple operation under any conditions.
4. Honeycomb style effectively cutting out glare andinternal reflections.
5. Exposed windage and elevation turrets benefiting aconvenient adjustment.
6. Unlimited eye relief
7. Compact and lightweight
8. Parallax corrected
9. Red and Green electrical switches

SPECIFICATIONS

• Model Number : HD25AJ
• Reticle color : Red / Green
• Retie type : 2 MOA red dot
• Reticle Brightness Settings : 0 - 8
• Magnification : 1 X
• Objective Lens Diameter : 25 mm
• Eye Relief : Unlimited
• Optical coating : Silver
• Shcokproof / nitrogelfilled / waterproof / fogproof: Yes
• Field ofView(m@100m): 10.7
• Parallax Free@ yds: 20
• Click Value(1click=MOA): 1
• Windage(MOA): 30
• Elevation(MOA): 30
• Battery Type: 1xCR2032
• Battery life: 150-220hrs
• Manufacturer: ohhunt
• OEM & ODM: Yes

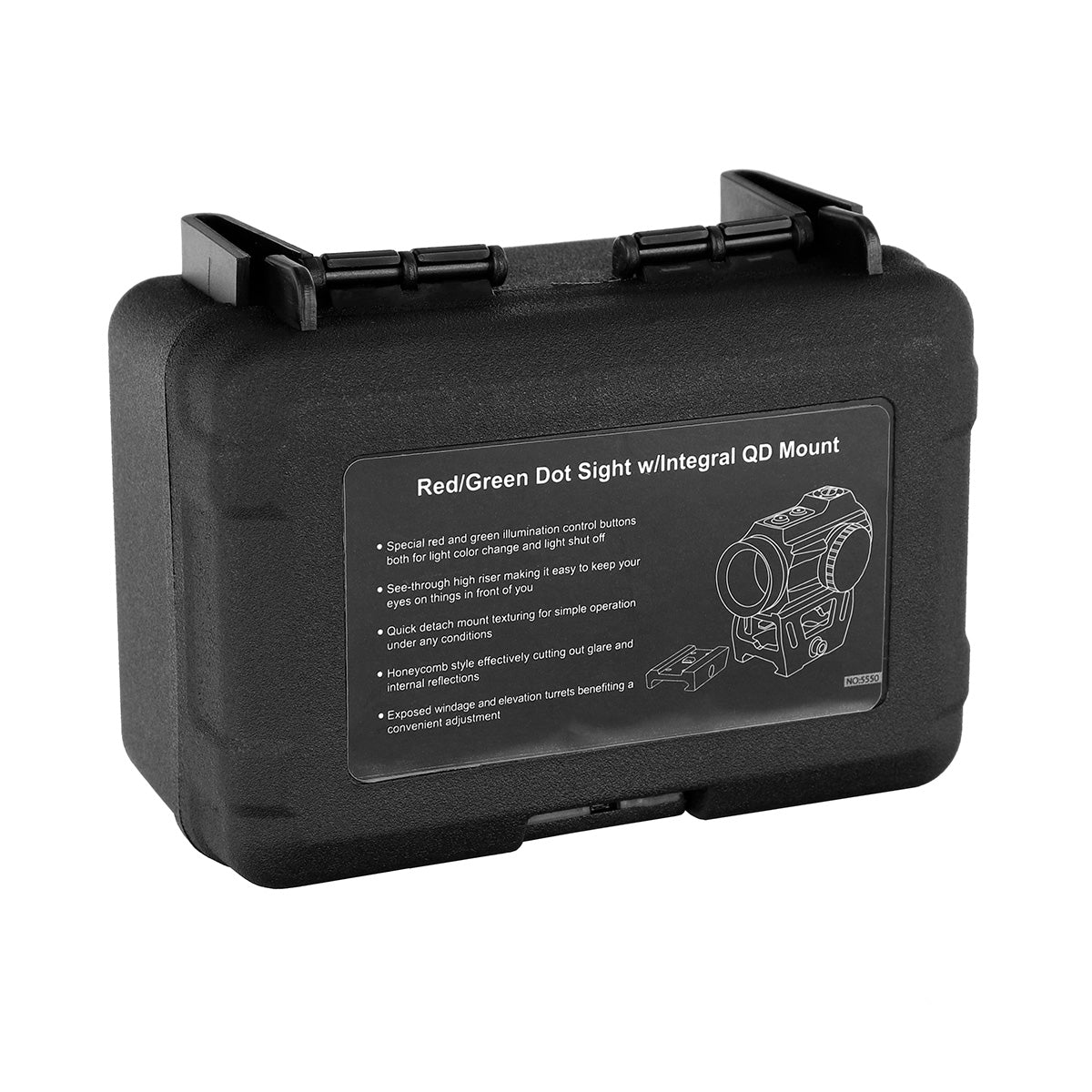

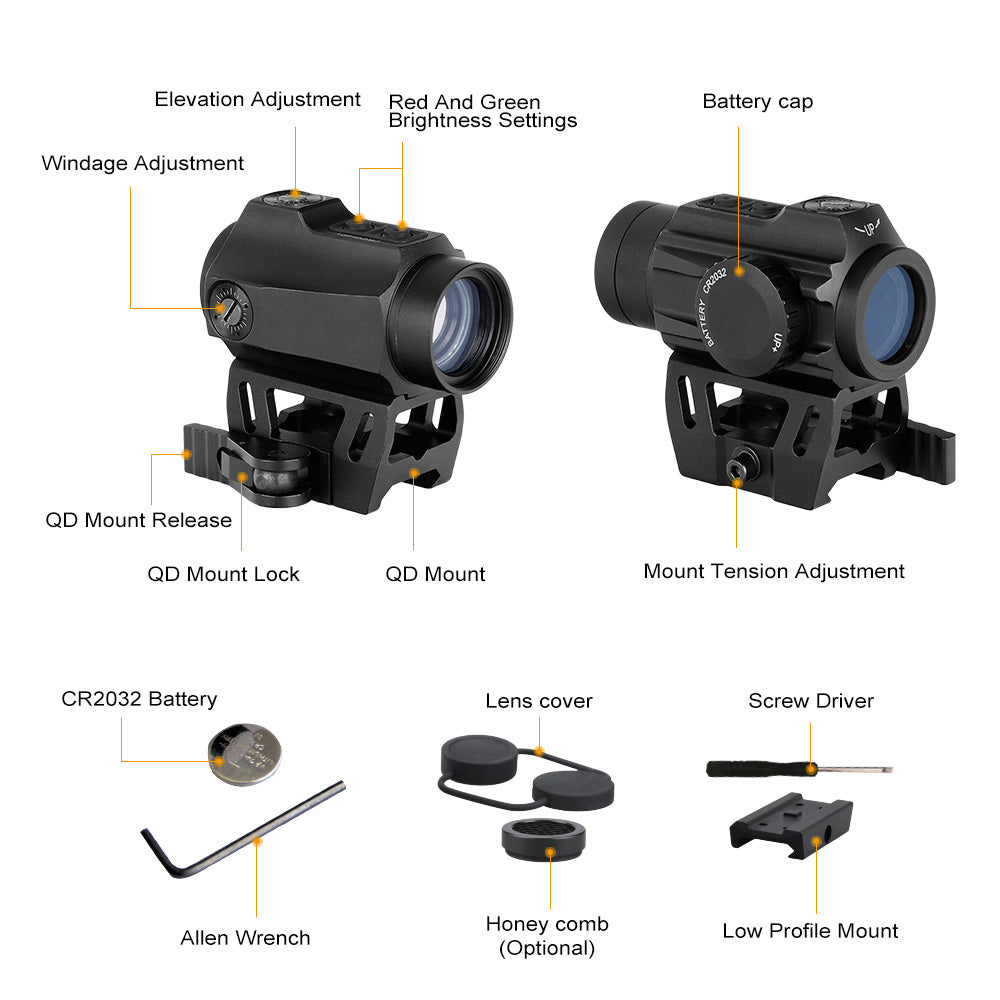

INCLUDED:

• Lens cover
• Honey comb
• Battery
• Allen Wrench
• Manual

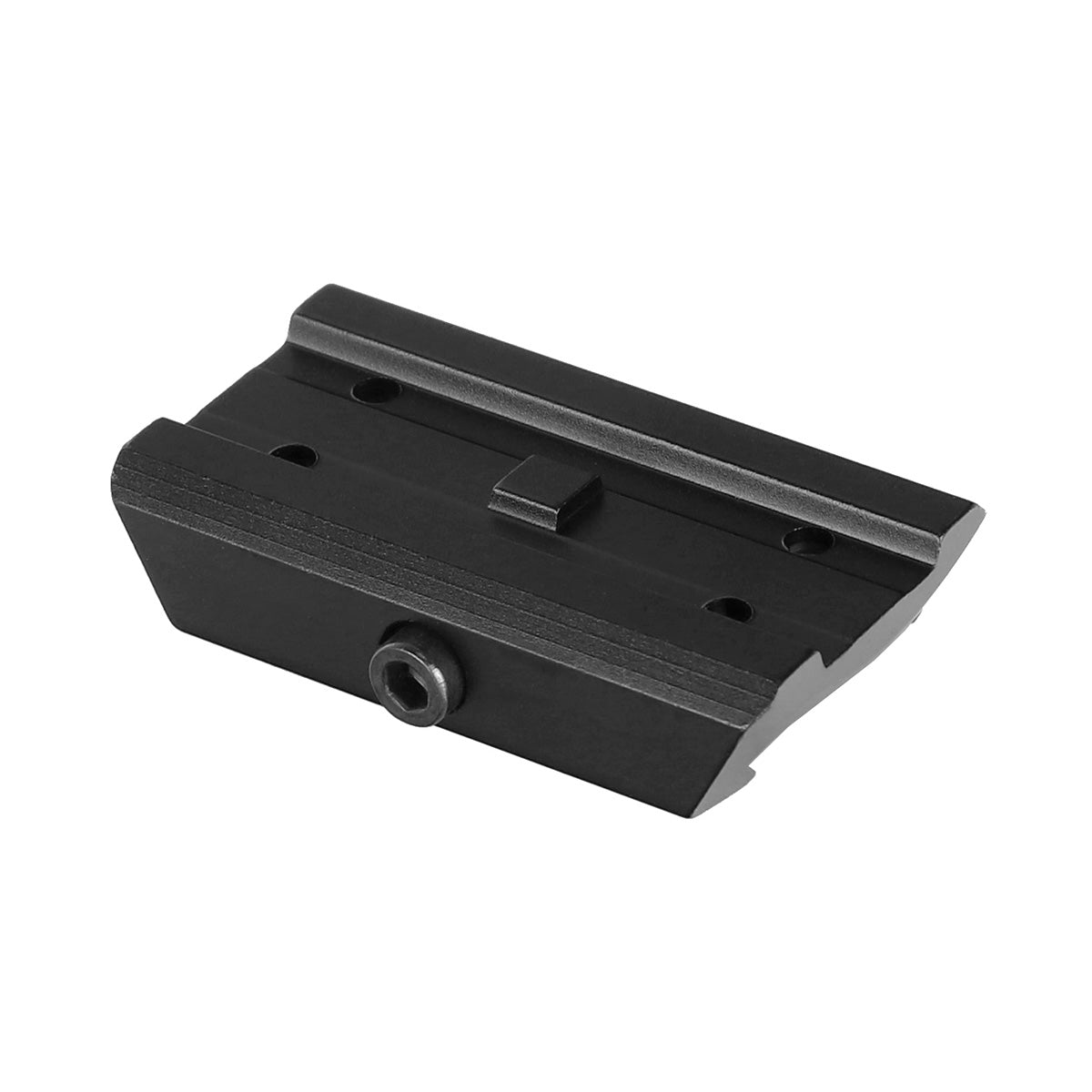

• QD Riser Mount + Low Profile Mount

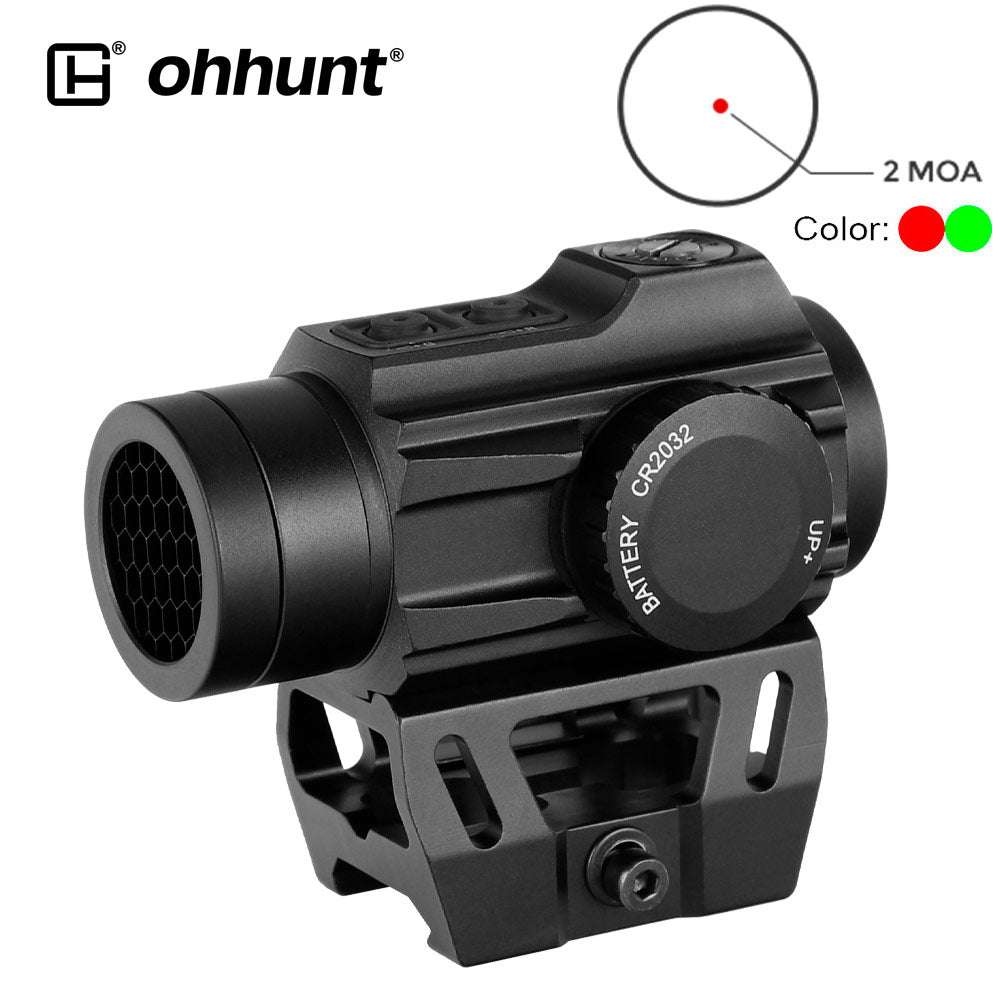

WHAT DOES 2 MOA RED DOT MEANING?

MOA stands for Minute Of Angle. An MOA number listed on a red dot sight refers to how large the dot will appear on a target that is 100 yards away, 1 MOA is 1 inch at 100 yards. So if you see a red dot on your scope that says 2 MOA, that means the red coloured dot placed upon the target which is at 100 yards of distance has a diameter of 2 inches.
Lower MOA is preferable for longer ranges.
Higher MOA is preferable for shorter ranges.

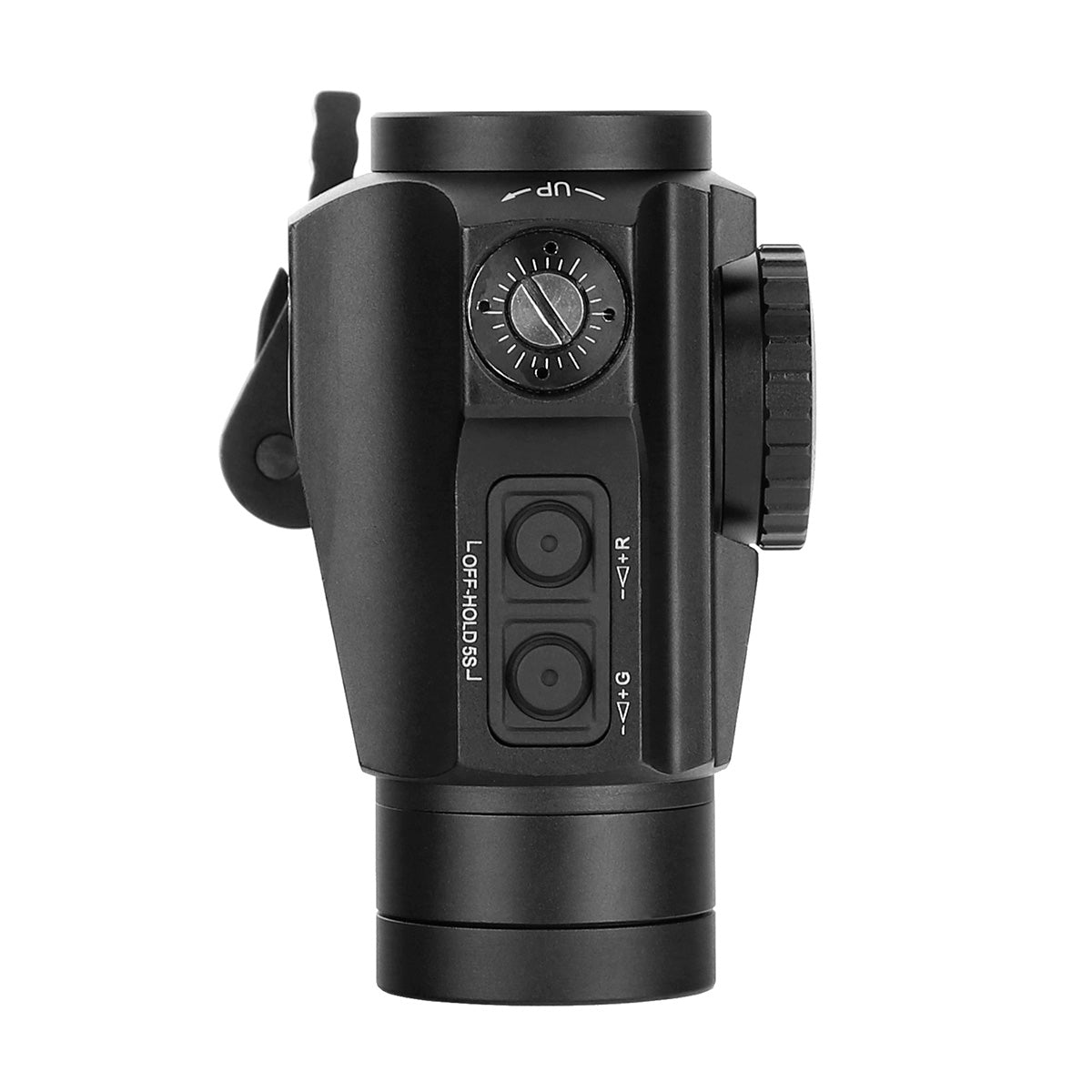

OPERATING THE ON/OFF SWITCH

To activate the Red Dot sight:
Locate the on /off switch and rotate the adjustment switch to the desired illumination setting. The switch can adjust the red or green and the brightness of the illumination. Press the power button step by step, theillumination will come lighter or dimmer. Press and hold the power button for 3s to 5s, it will be off

BORESIGHTING THE RED DOT SIGHT

Properly installed red dot sight requires boresighting. lt can and should bedone by the user himself in order to learn basic rules of ballistics. The radiant can be regulated using the turret knobs. They allow to adjust the impact point of projective vertically and horizontally.

Please note that: Astigmatism may affect the clarity of red dot reticles.

OPERATING THE WINDAGE AND ELEVATION ADJUSTMENTS

• 1. The caps covering the windage and elevation adjustments.
• 2. Use the top of the cap to make adjustments by aligning the pins with theholes on the adjustments. The windage and elevation adjustments are1MOA, meaning that 1 click moves the point of impact 1 inch at 100 yards Adjustments can be felt and heard.
• 3. Once adjustments are complete, screw the caps back on.

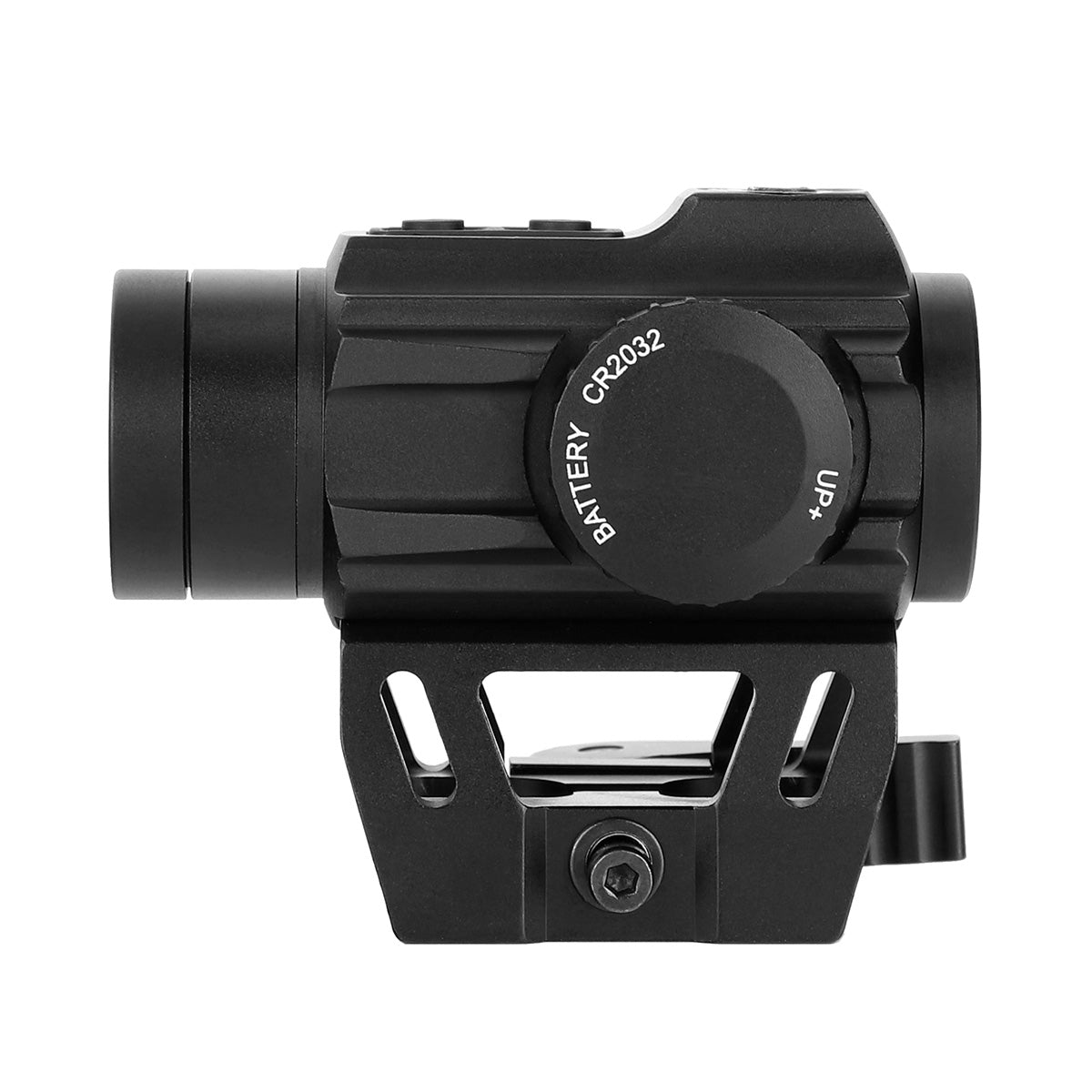

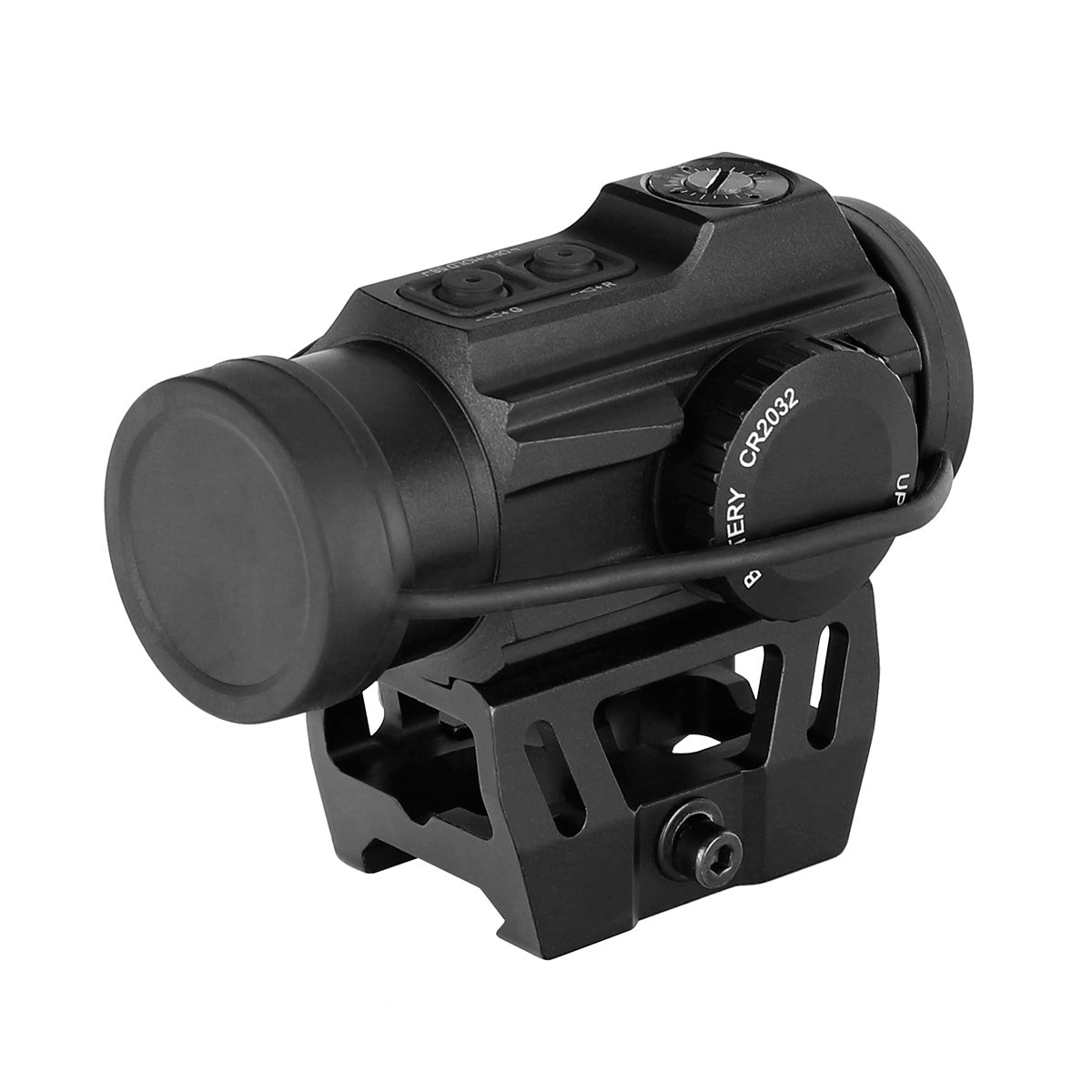

INSTALLING THE BATTERY

• 1. Remove the battery cap by turning it counter clockwise.
• 2. Inserts battery (type CR2032) with positive (+) end toward cap. Caution,while replacing battery (not necessary when the sight is new) beforeinstalling battery cap,inspect that the O-ring is present and not damagedFailure to do so could result in water leakage into the battery compartment. Screw the battery cap clockwise. Do not overtighten.
