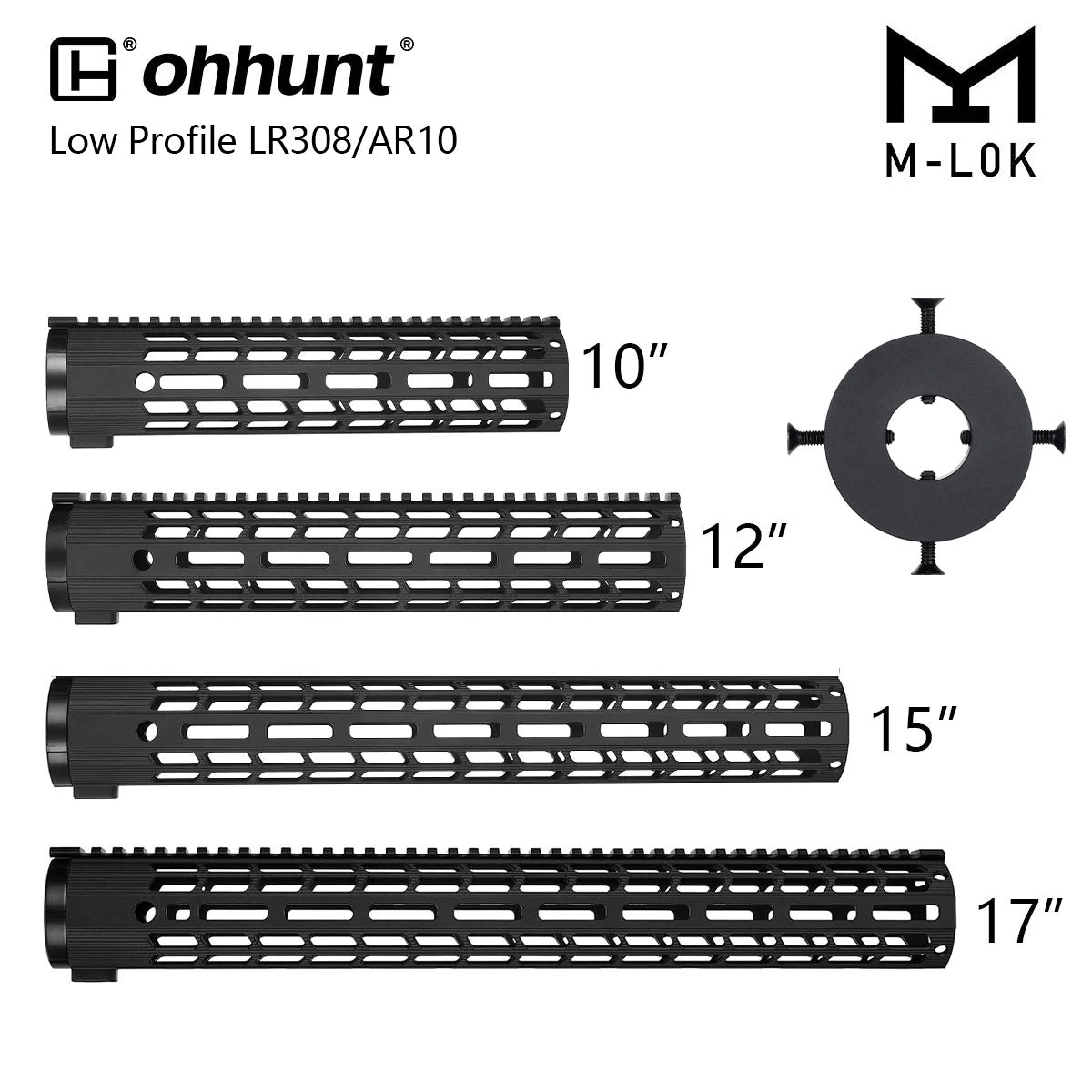

• LR-308 Handguard with end cap
1 11

ohhunt

ohhunt® AR10 LR-308 Handguard M-lok Free Float Ultra Light with Barrel Nut 10" 12" 15" 17"

ohhunt® AR10 LR-308 Handguard M-lok Free Float Ultra Light with Barrel Nut 10" 12" 15" 17"

$47.50 USD
$36.90 USD $47.50 USD
Sale Sold out
Shipping calculated at checkout.
Length
Barrel Nut
Type

Estimated Delivery Time

Handling Times: 1~2 Days
United States: 10~15 days
Europe: 15~30 days
Asia: 10~15 days
Other Countries: 10~45 days
Ships From: China

Free floating forerail design helps with accuracy. This is a non-slim diameter, It is good for accommodating integral thermal sleeves, muzzle shrouds or suppressors. Pre-drilled at the end for your choice barrel caps, but there is no barrel cap included.

Design allowsk for rail or M-LOK accessories to be placed at the 3/6/9 o-clock positions. Great for attaching hand stops, handguards, picatinny rails or light switch panels! Comes with timing shims for that precise fit. Fits on any setup with a 308 / 762 mil-spec barrel mount, including airsoft, BB and pellet systems.

Features:

  • For LR-308 & AR-10: The Barrel Nut is available in two threads, 16 TPI thread (fit LR-308) and 18 TPI thread (fit AR-10 Armalite), please choose according to your needs.
  • Lightweight: Cut for weight reduction, this system still retains the utmost in robust construction and provides a Flat top Picatinny rail mounting system and plenty of attachment points for all your M-Lok accessories.
  • With End Cap Holes: Pre-Drilled at the End for the End Cap (Not Include), Keep Debris and Branches from Getting Caught Up in the Rail System.
  • Free Float Design:Free Float Handguard eliminates loads from barrel, reducing the deflection for more accurate shooting.
  • Solid 7075-T6 Aluminum: The Barrel Nut is made from 7075-T6 Aerospace aluminum, provides greater tensile strength, shear strength, and Brinell hardness.
  • Barrel Nut Sleeve: helps lock handguard into place.

Specification:

  • Guide Type: AR-10 Handguard
  • Comulatible With: AR10, LR-308
  • Rail Type: Flat Top Picatinny Rail
  • Profile: Low Profile
  • Handguard Material: 6061-T6 Aluminum
  • Barrel Nut Material: 7075-T6 Aluminum
  • Weight: 236g(10"), 268g(12"), 322g(15"), 395g(17")
  • Outside Width: 2.06"
  • Inside Diameter: 1.86"
  • Outside Height (Including top rail): 2.33"
  • No. of Rails: 1
  • Manufacturer: ohhunt
  • OEM & ODM: Yes

Includes:

  • 1 x Handguard
  • 1 x 7075 Aluminum Barrel Nut
  • 1 x Barrel Nut Sleeve
  • 1 x Barrel Nut Bolt
  • 4 x Barrel Nut Shims
  • 1 x Barrel Nut Bolt Allen Hex Wrench
View full details

Customer Reviews

Based on 6 reviews
67%
(4)
17%
(1)
17%
(1)
0%
(0)
0%
(0)
J
Juha
AR-10 ff handguard with proper barrelnut threads for ArmaLite AR-10 receiver

This is a nicely finished M-lok ff handguard with possibility to order with proper barrelnut for ArmaLite AR-10 receiver threads. Have already used similar one in another AR-10 and like it very much. Ordered again but this time a bit longer, I like allso the wide diameter enabling under the handguard assembled suppressor. Enough rigid for my huntingtrips. Only minus is that one must order a separate barrelnut tool.

R
Rod H.
Handguard good Barrel nut not so much!

Because the AR10 platform is particular there needs to be more information and a tool provided for correct fit and install. My gunsmith had to use a punch to tap through the barrel nut.

D
Donovan H.

ohhunt® Ultra Light AR10 LR308 M-lok Free Float Handguard - 12 inch

J
Jim
Pleasantly surprised

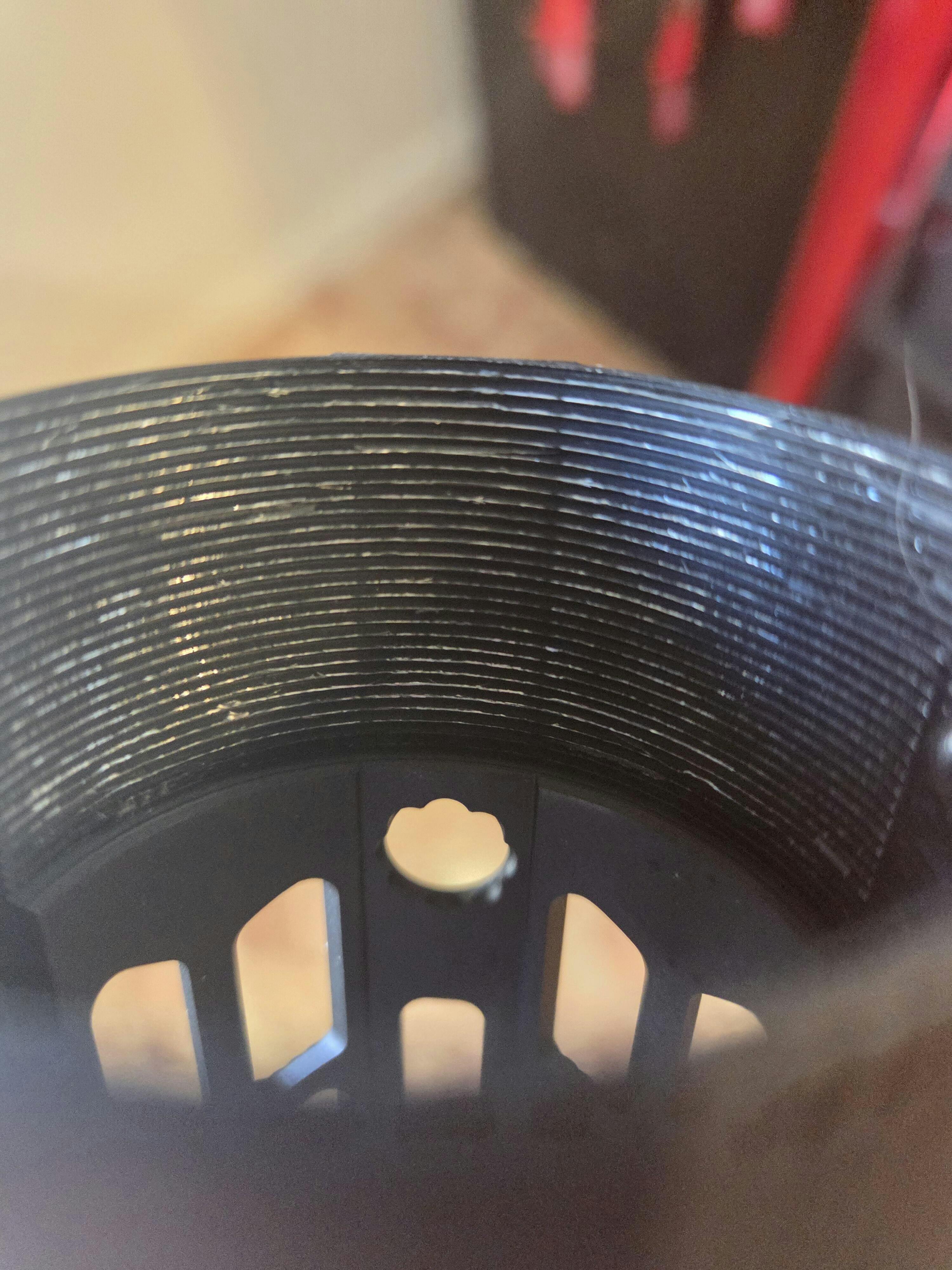

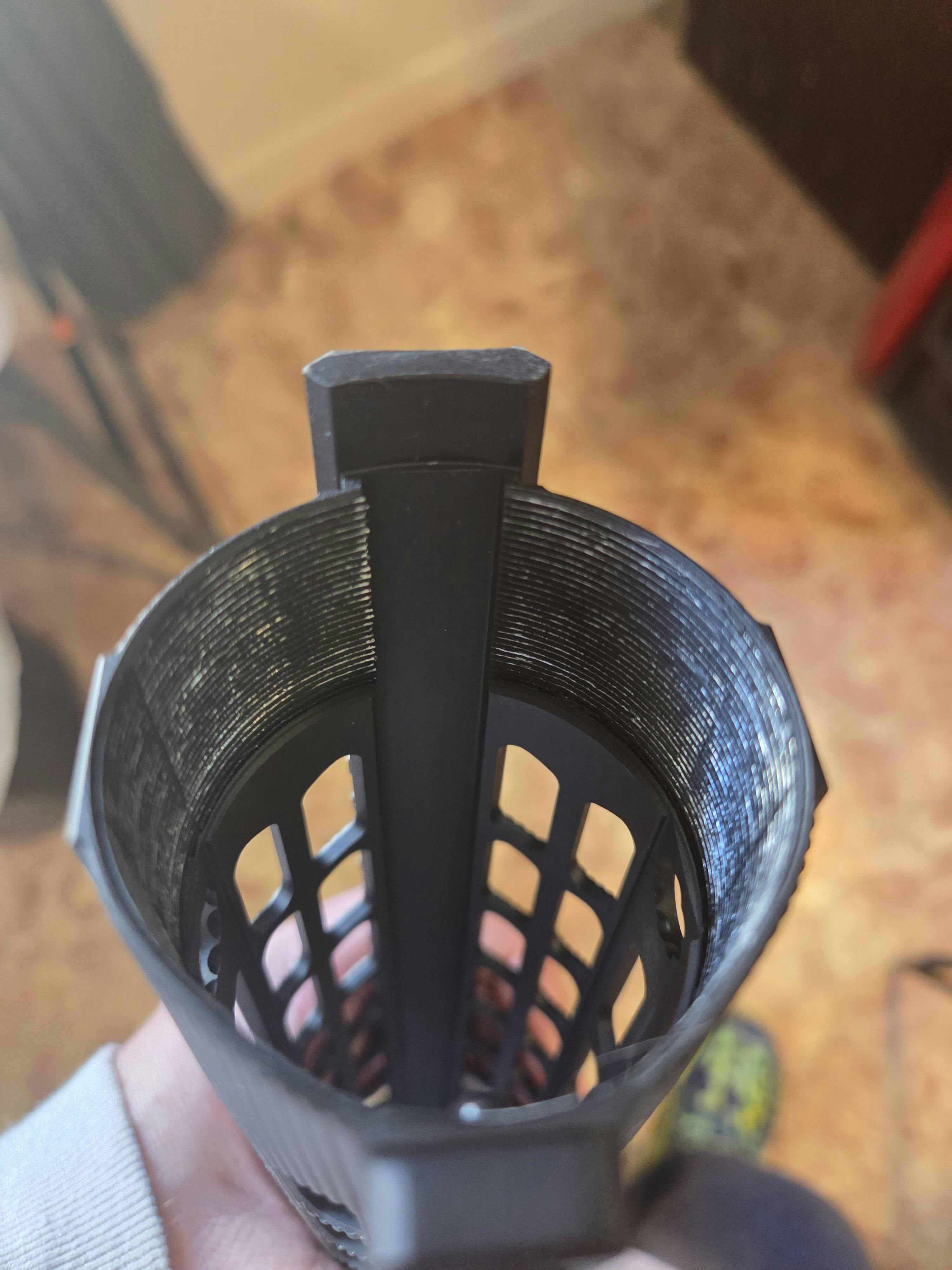

Got this for my 16" 8.6 blackout build, excellent machining for the cost. Shipping was also fast for as far as it came, I've had things from optics planet take longer and they weren't coming from China. Barrel nut looks superb and the exterior of the handguard was perfection. The only flaw was the thread on the handguard for the barrel nut were visually damaged and very fine. I just worry that it may be easy to cross thread, though they looked a little chewed up on the handguard they threaded together perfectly. Retention looks like it should be solid though the pictures and description don't really define them well as to how it goes together. It comes with shims to time it with the upper that fit nicely although they aren't the most precision (burr's and little dents) but that should be fine for what they do. All together I am very satisfied with my purchase I will buy from Ohhunt again.

R
Roy G.

Like it. It’s a little thick. Will work great on my 12” 8.6 BLK build. Hard to find AR 10 hanguards under 12” for 18TPI receivers. They

J
Joe B.
Satisfied

Will buy again
