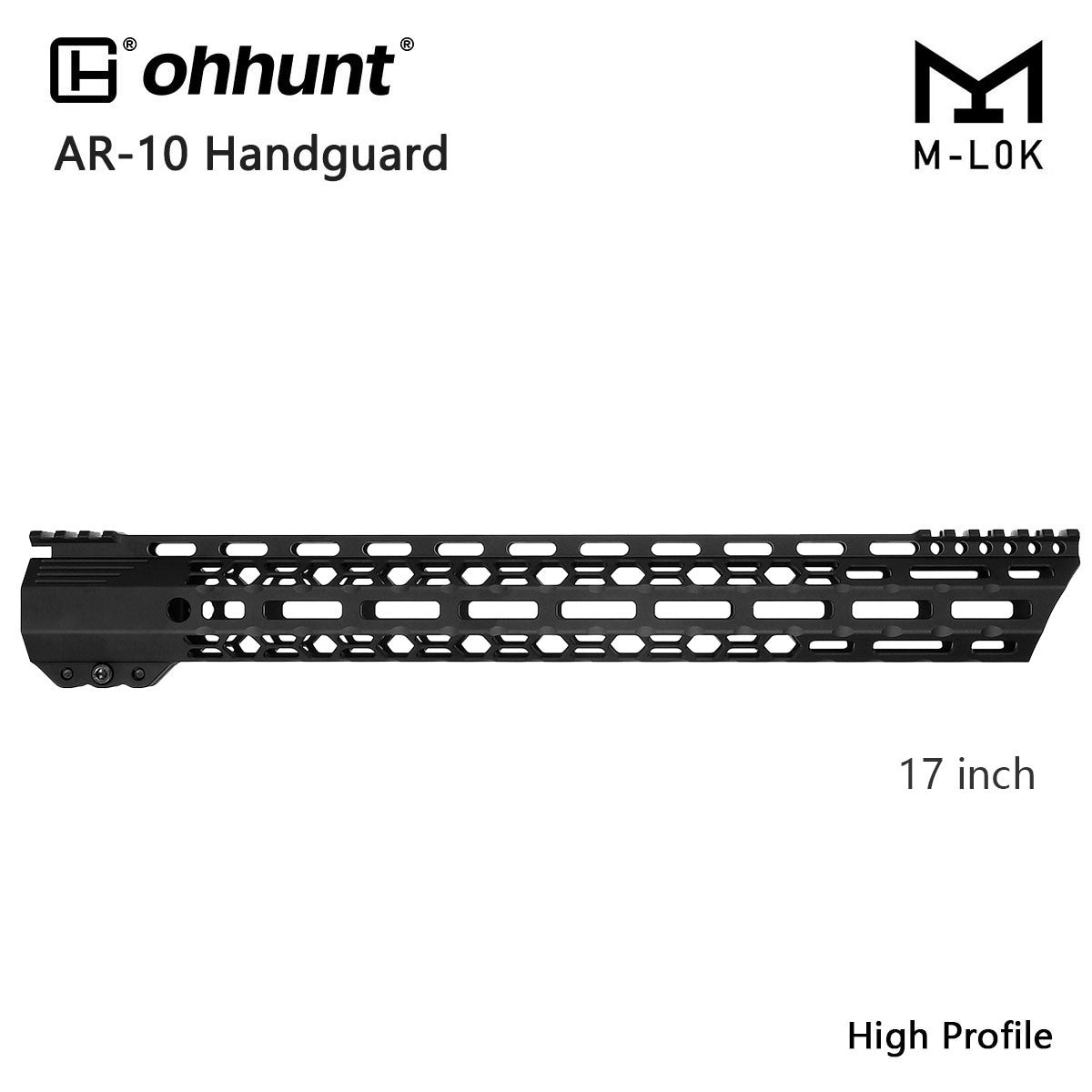

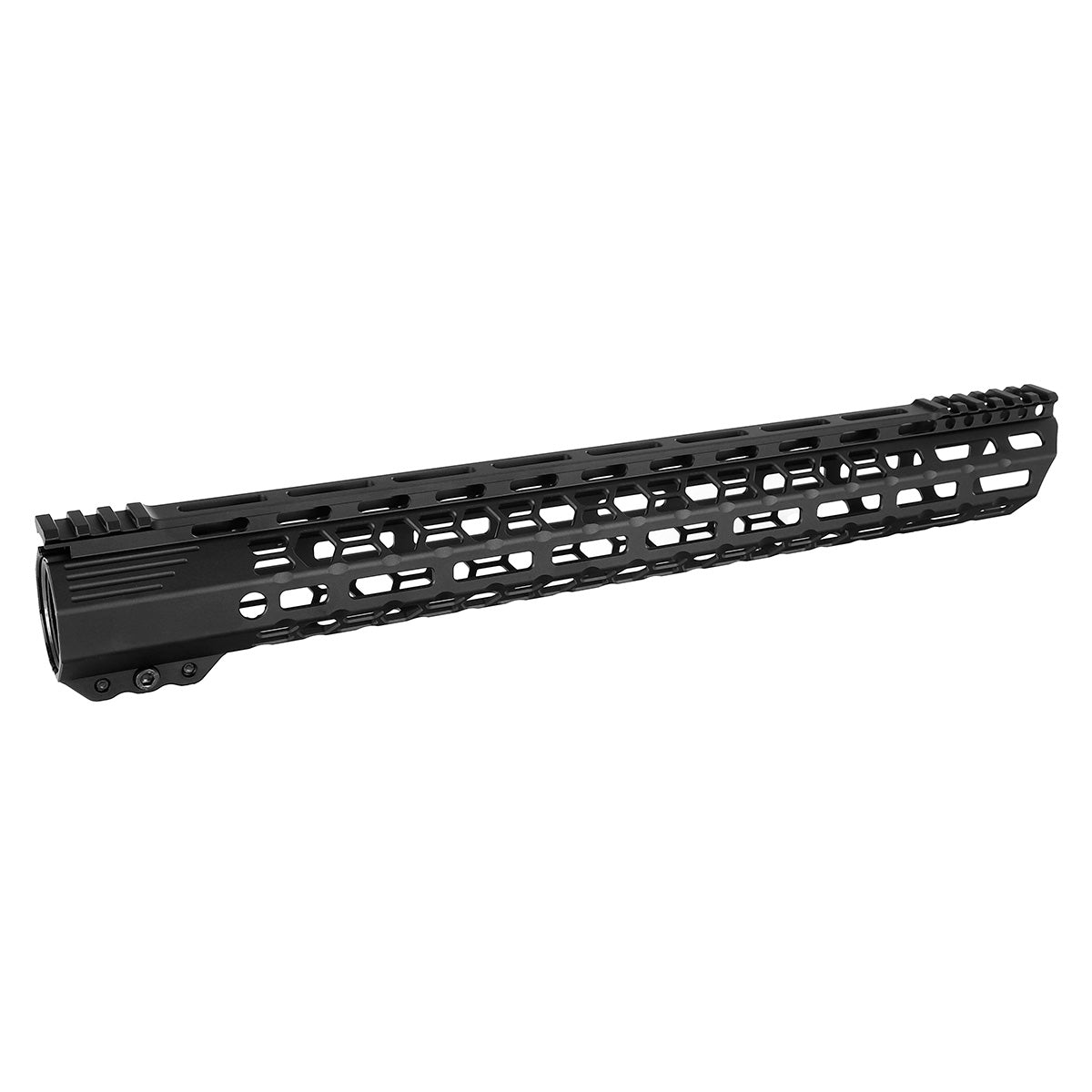

ohhunt® High Profile AR10 LR-308 M-lok Free-Float Handguard with Angle Cut Front - 17 inch

ohhunt® High Profile AR10 LR-308 M-lok Free-Float Handguard with Angle Cut Front - 17 inch

SKU:N40BHCM-FB-17

Regular price $70.50 USD
Regular price Sale price $70.50 USD
Sale Sold out
Shipping calculated at checkout.
Length

Estimated Delivery Time

Ships From: United States
Estimated Delivery Time:
2~6 days.

Ships From: China
Estimated Delivery Time:
10~15 days.

Note: Due to shipping restrictions, currently we are unable to ship handguards to other countries other than the United States, unless purchased in bulk. All other items can be shipped to most of the countries.

Features:

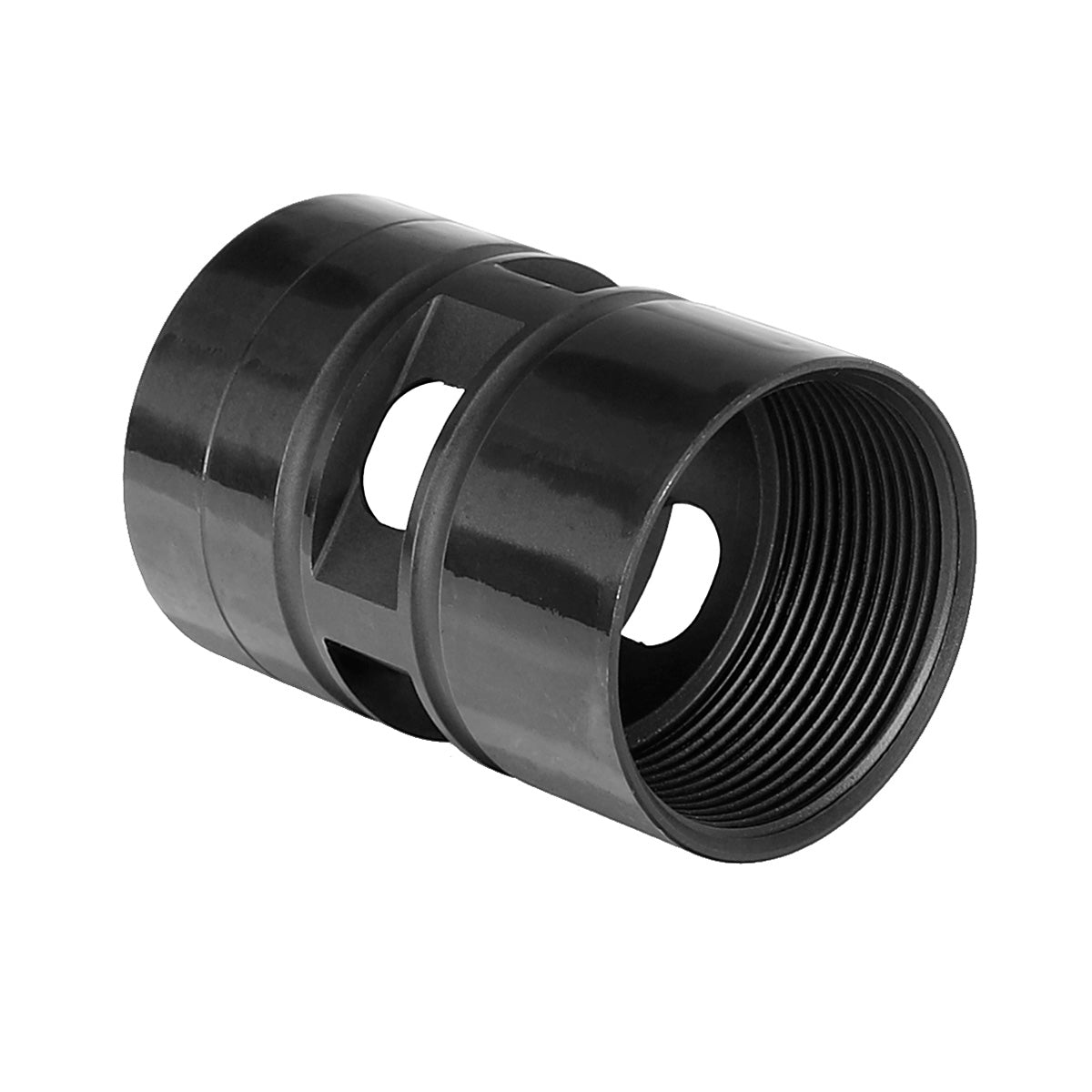

  • For High Profile LR308 & ArmaLite AR10: one side of the Barrel Nut with 16 tpi thread (fit DPMS LR308) and the other side with 18 tpi thread (ArmaLite AR10).
  • Lightweight: Cut for weight reduction, this system still retains the utmost in robust construction and provides a Flat top Picatinny rail mounting system and plenty of attachment points for all your M-Lok accessories
  • Smooth CNC Machining: Fully Dehorned and Deburred, all the Cutout Edges are Beveled to Ensure the Safety For Handling.
  • Ergonomic Grooves: The engraved grooves on the handguard provide a more ergonomic hold and a unique look, and maintains the strength and stability that the shooters require by prevent from sliding.
  • Free Float Design: Free Float Handguard eliminates loads from barrel, reducing the deflection for more accurate shooting.
  • Solid 7075-T6 Aluminum: The Barrel Nut is made from 7075-T6 Aerospace aluminum, provides greater tensile strength, shear strength, and Brinell hardness.

Specification:

  • Guide Type: M-lok Free Float Handguard
  • Platform: LR-308
  • Comulatible With: DPMS High Profile Upper Receivers
  • Rail Type: Picatinny Rail
  • Gas System Length: Extended Rifle
  • Finish: Hardcoat Anodized
  • Handguard Material: 6061-T6 Aluminum
  • Barrel Nut Material: 7075-T6 Aluminum
  • Handguard Length: 17 inch
  • Handguard Weight: 495g
  • Outside Height (Including top rail): 2.18"
  • Outside Width: 1.73"
  • Inside Diameter: 1.6"
  • Barrel Nut Outer Diameter: 1.6"
  • Barrel Nut Inner Diameter: 1.37"
  • Barrel Nut Weight: 3.7oz / 105g
  • No. of Rails: 1
  • Manufacturer: ohhunt
  • OEM & ODM: Yes
View full details

What is the Difference Between High Profile and Low Profile LR-308/AR-10 handguard?

The receiver height on the various LR-308/AR-10 rifles vary since there is no mil-spec/standardization with this platform compared to the AR-15. Determining the receiver height is needed when finding the right handguard that will fit if switching out an existing handguard or building an LR-308/AR-10.

The common two are aptly named high and low profile. Simply measure the height of the tab that juts out above the charging handle. Low-profile receivers measure 1/8" and high-profile receivers measure 3/16".
