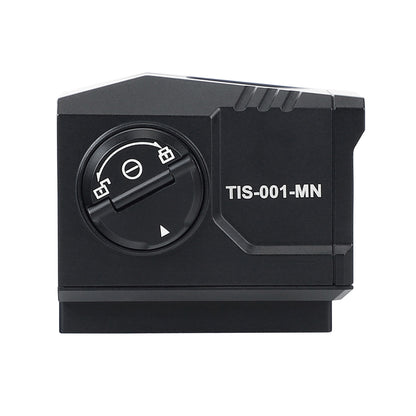

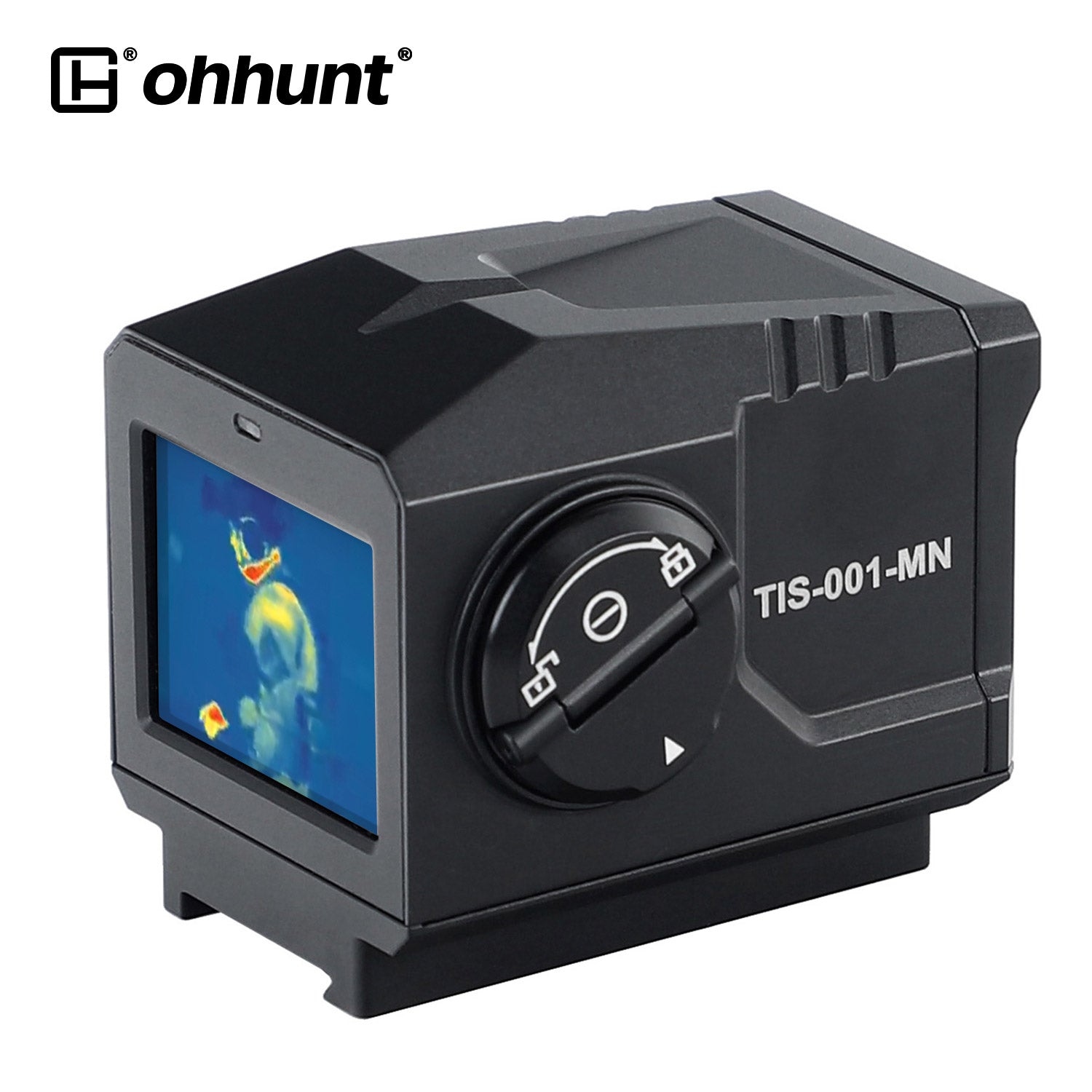

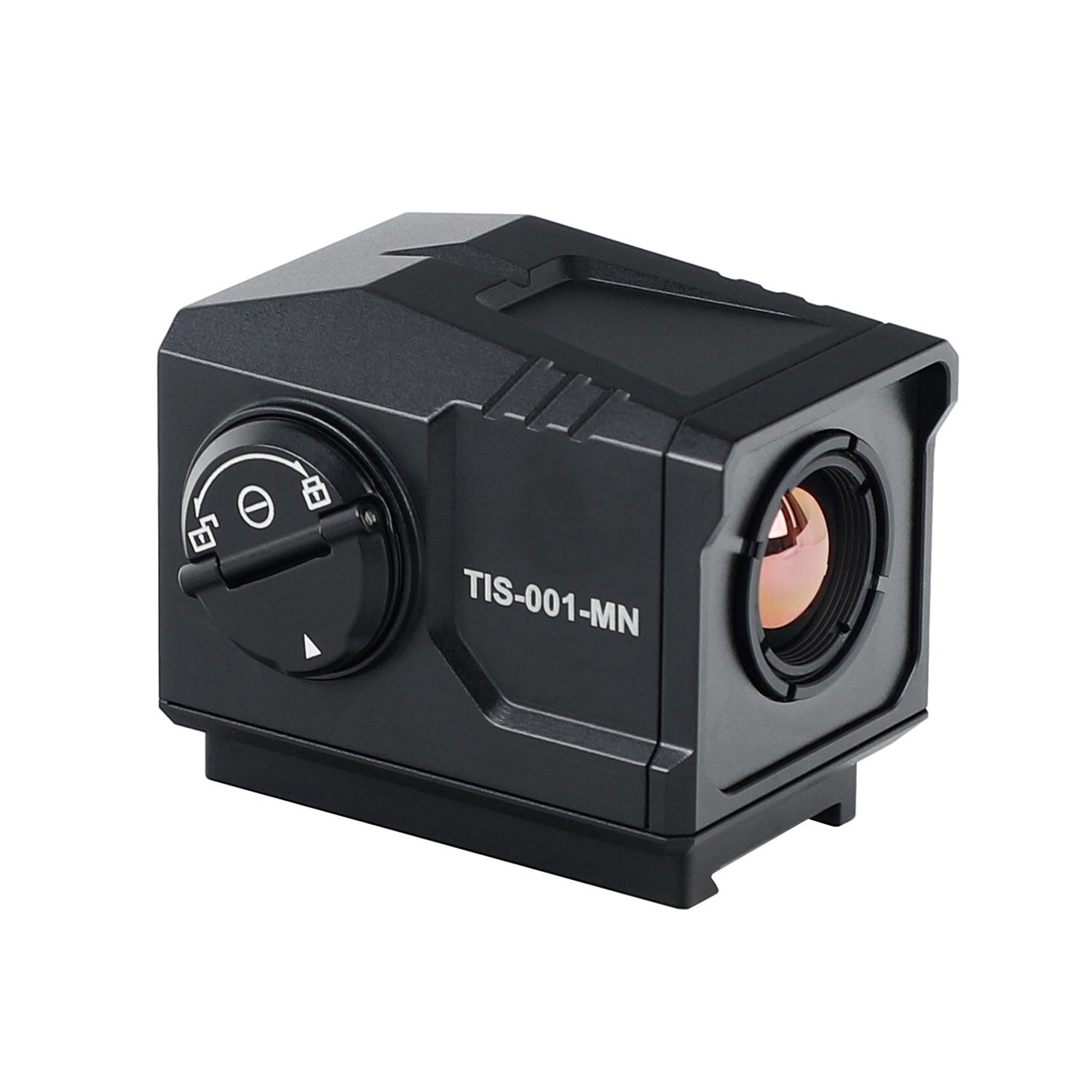

ohhunt® Mini Thermal Sight, Thermal Imaging Scope TIS-001-MN

ohhunt® Mini Thermal Sight, Thermal Imaging Scope TIS-001-MN

TIS-001-MN

$669.00 USD
$669.00 USD
Sale Sold out
Shipping calculated at checkout.

Estimated Delivery Time

  • Handling Times: 1~2 Days
  • United States: 10~15 days
  • Europe: 15~30 days
  • Asia: 10~15 days
  • Other Countries: 10~45 days
    Ships From: China

Customs Duties And Taxes

United States:
For items shipped from China, we select the shipping method based on the specific product. For most packages, the carrier is responsible for paying any applicable duties. However, certain items can only be shipped via special channels or through FedEx/UPS, and any resulting duties must be paid by the customer.

Europe and other countries：
Ohhunt is not responsible for any customs & taxes applied to your order. All fees imposed during or after shipping are the responsibility of the customer (tariffs, taxes, etc.).

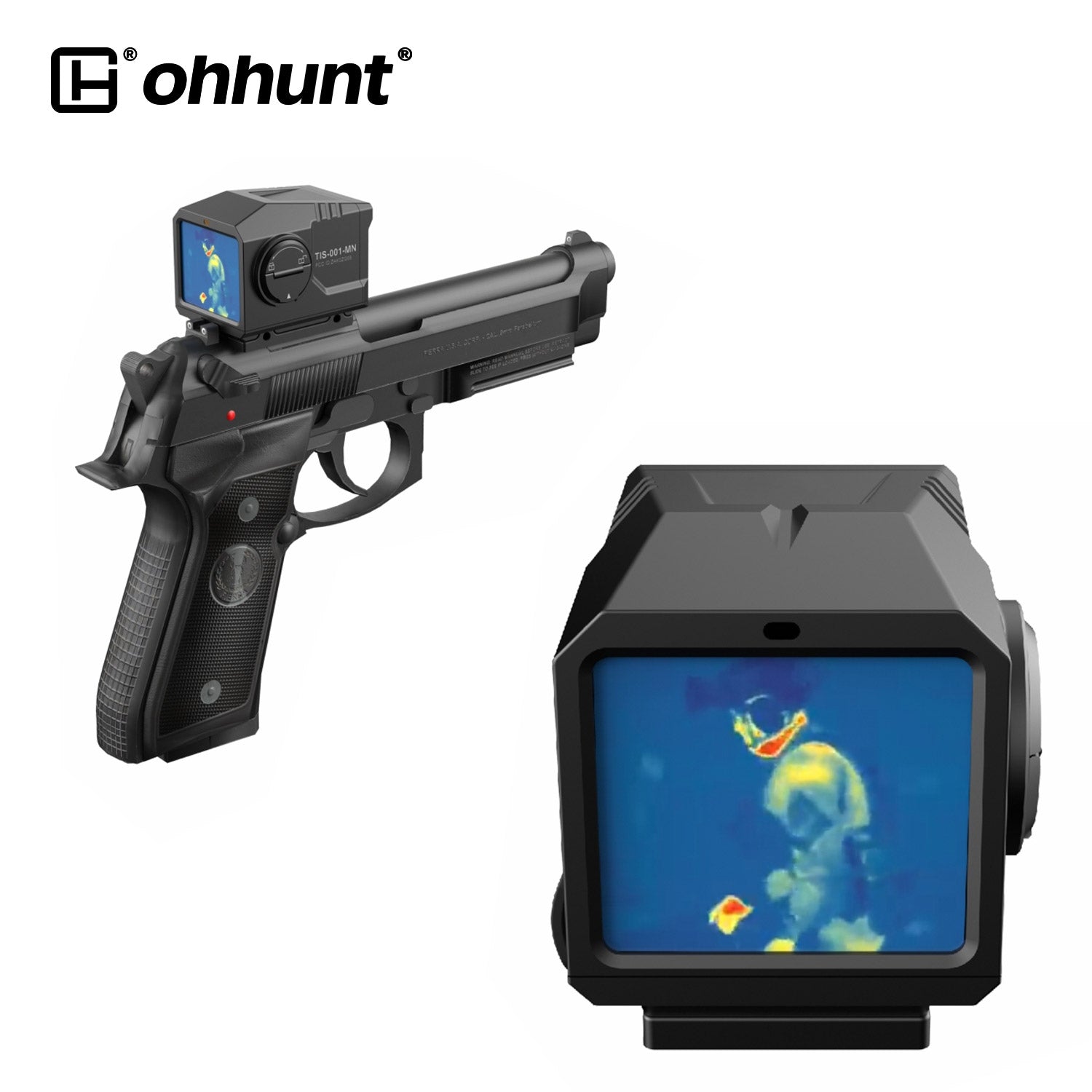

The mini thermal imaging sight features the latest Hyper Light high-definition imaging system for clear images.lt also supports both touch and button operation modes,enabling rapid response in various complex or harsh environments.

Innovation&Capabilities:

  1. 100g Ultra-lightweight.
  2. 680m Detection Range.
  3. 13mm/F0.9 Lens.
  4. 8 Types Palette.
  5. 256*192 @12μm Thermal Sensor.
  6. Thermal Tech.
  7. Smart Sleep.
  8. 60Hz Refresh Rate.
  9. 1.41inch Touch Screen.
  10. Auto Brightness.
  11. ACRO Footprint.

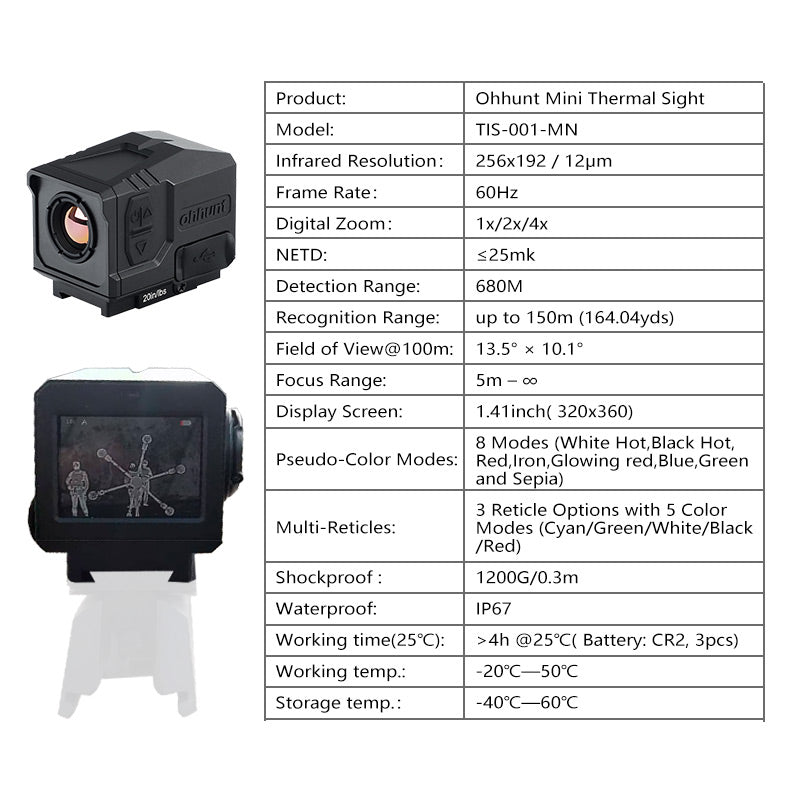

Parameters:

  • Type:  Mini Thermal Sight.
  • Model:  TIS-001-MN.
  • Infrared Resolution:  256*192@12μm.
  • Frame Rate:  60Hz.
  • Magnification:  1X/2X/4X.
  • NETD:  25mk.
  • Recognition Range: Up to 150m (164.04yds).
  • Field of View@100m: 13.5°x 10.1°.
  • Focus Range:  5m-∞.
  • Display Screen: 1.41inch (320x360).
  • Pseudo-Color Modes: 8 Modes (White Hot, Black Hot, Red, Iron, Glowing red, Blue, Green and Sepia).

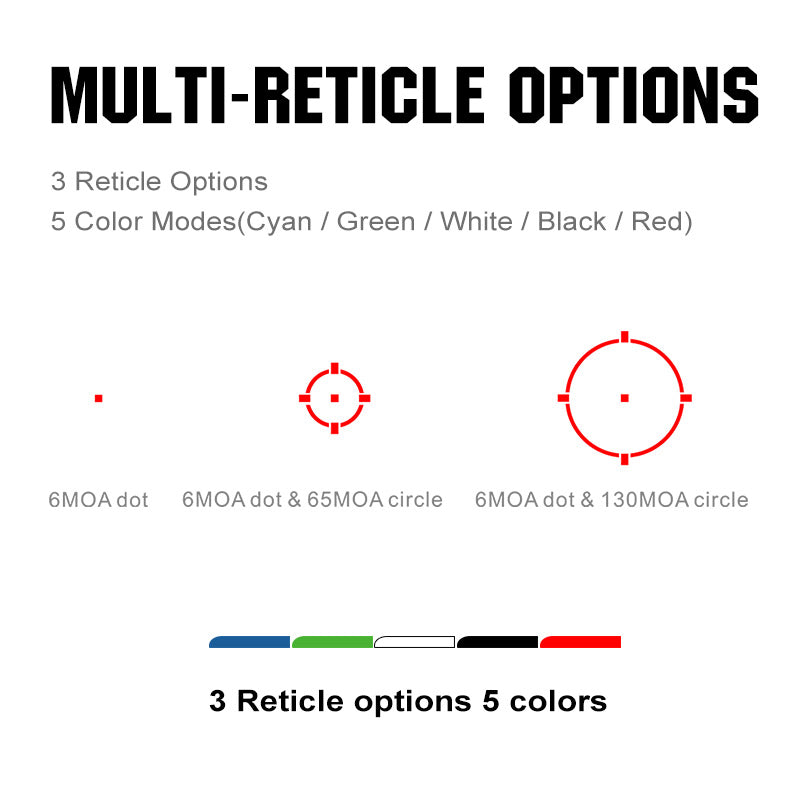

  • Multi-Reticles: 3 Reticle Options with 5 Color Modes (Cyan/Green/White/Black/Red).
  • Waterproof: IP67.
  • Shockproof: 1200G/0.3ms.
  • Working Time(25°C):  >4h@25°C( Battery: CR2, 3pcs).
  • Working Temp: -20℃-50℃.
  • Storage Temp:  -40℃-60℃.

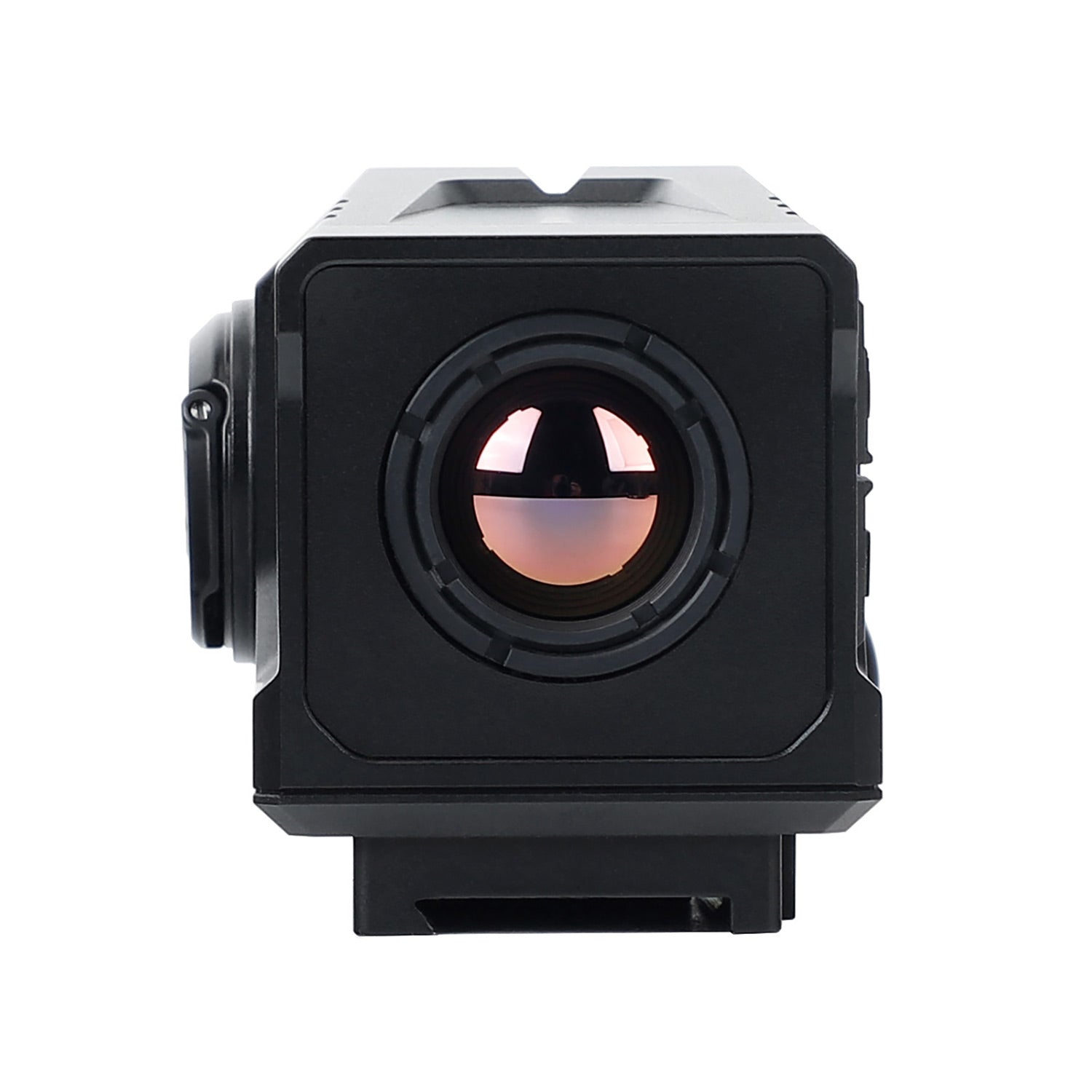

  • Lens: 13mm F0.9.
  • Magnification:   0.5x.
  • Detection Range: 680m.
  • Humidity: 10% to 95%, non-condensing.
  • Vibration:  10Hz～150Hz.
  • Drop height: Resistant to 1m drop, 6 sides.
  • Boot-up Time: <3s.
  • Color:  Black.
  • Housing Material: Aluminum 7075-T6
  • Weight(g): 100g+13g(Battery).
  • Size:  ≤50×40×44mm.
  • Certified Region: the European Union, the United States, Russia
  • Language: 9 types, Chinese/English/Russian/German/French/Italian/Spanish/Japanese/Portuguese.

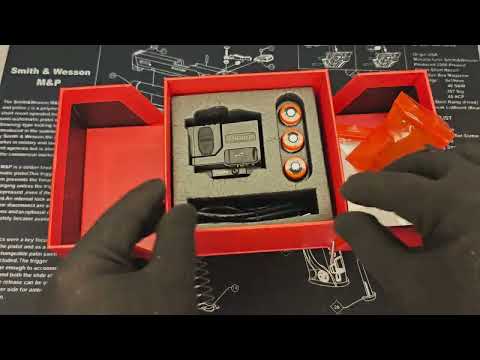

  • Accessories: Data cable, Quick operation guide, Safety information instructions, Warranty card, Batteries*3, Cleaning cloth, Gun shooting base, Wrench, Heating patch.
  • Smart Sleep:   yes.
  • Automatic Brightness Adjustment:   yes.
  • Hot Track:  yes.
  • Palette: white, black, red, iron, glowing red, blue, green and Sepia
  • Cool/Warm:  yes.
  • Calibration:  yes.
